helidemo_sdl.c File Reference

This is a simple demo which shows how to work with libhelicontrol. More...

#include <stdio.h>
#include <stdint.h>
#include <getopt.h>
#include <errno.h>
#include <unistd.h>
#include <SDL/SDL.h>
#include <helicontrol.h>

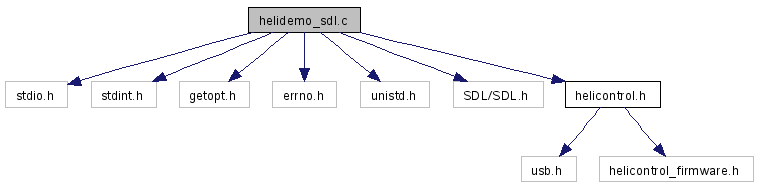

Include dependency graph for helidemo_sdl.c:

Go to the source code of this file.

Defines
#define	bound(min, num, max)   ((num) >= (min) ? ((num) < (max) ? (num) : (max)) : (min))
#define	JOYSTICK   0
#define	JOYSTICK_THROTTLE_MAX   -32768
#define	JOYSTICK_YAW_MAX   -32768
#define	JOYSTICK_PITCH_MAX   -32768
#define	JOYSTICK_ROLL_MAX   32768
#define	JOYSTICK_AXIS_SAUCER_ROLL   2
#define	JOYSTICK_AXIS_SAUCER_YAW   0
#define	JOYSTICK_AXIS_THROTTLE   1
#define	JOYSTICK_AXIS_YAW   2
#define	JOYSTICK_AXIS_PITCH   3
#define	JOYSTICK_BUTTON_TRIM_L   6
#define	JOYSTICK_BUTTON_TRIM_R   7
#define	JOYSTICK_BUTTON_FIRE1   4
#define	JOYSTICK_BUTTON_FIRE2   5
#define	JOYSTICK_BUTTON_PITCH1   4
#define	JOYSTICK_BUTTON_PITCH2   5
#define	INTERVAL   25000
#define	MODE_NORMAL   0
#define	MODE_JOYSTICK   1
#define	MODE_STOP   2
Functions
static void	usage (void)
static void	send_frame (char protocol, char channel, char throttle, char trim, char yaw, char pitch, char special)
int	main (int argc, char **argv)
Variables
static struct option	long_options []
struct usb_dev_handle *	handle

---

Detailed Description

This is a simple demo which shows how to work with libhelicontrol.

It implements a simple remote control, similar to helictrl.cc in ../tools but with joystick support (SDL, not available on win32/vs2008).

Definition in file helidemo_sdl.c.

---

Define Documentation

#define bound	(	min,
		num,
		max		)	((num) >= (min) ? ((num) < (max) ? (num) : (max)) : (min))

Examples:

helictrl.cc, helidemo_sdl.c, and helidemo_simple.c.

Definition at line 44 of file helidemo_sdl.c.

Referenced by send_frame().

#define INTERVAL   25000

Examples:

helidemo_sdl.c.

Definition at line 63 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK   0

Examples:

helidemo_sdl.c.

Definition at line 46 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_AXIS_PITCH   3

Examples:

helidemo_sdl.c.

Definition at line 55 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_AXIS_SAUCER_ROLL   2

Examples:

helidemo_sdl.c.

Definition at line 51 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_AXIS_SAUCER_YAW   0

Examples:

helidemo_sdl.c.

Definition at line 52 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_AXIS_THROTTLE   1

Examples:

helidemo_sdl.c.

Definition at line 53 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_AXIS_YAW   2

Examples:

helidemo_sdl.c.

Definition at line 54 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_FIRE1   4

Examples:

helidemo_sdl.c.

Definition at line 58 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_FIRE2   5

Examples:

helidemo_sdl.c.

Definition at line 59 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_PITCH1   4

Examples:

helidemo_sdl.c.

Definition at line 60 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_PITCH2   5

Examples:

helidemo_sdl.c.

Definition at line 61 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_TRIM_L   6

Examples:

helidemo_sdl.c.

Definition at line 56 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_BUTTON_TRIM_R   7

Examples:

helidemo_sdl.c.

Definition at line 57 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_PITCH_MAX   -32768

Examples:

helidemo_sdl.c.

Definition at line 49 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_ROLL_MAX   32768

Examples:

helidemo_sdl.c.

Definition at line 50 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_THROTTLE_MAX   -32768

Examples:

helidemo_sdl.c.

Definition at line 47 of file helidemo_sdl.c.

Referenced by main().

#define JOYSTICK_YAW_MAX   -32768

Examples:

helidemo_sdl.c.

Definition at line 48 of file helidemo_sdl.c.

Referenced by main().

#define MODE_JOYSTICK   1

Examples:

helidemo_sdl.c.

Definition at line 66 of file helidemo_sdl.c.

Referenced by main().

#define MODE_NORMAL   0

Examples:

helictrl.cc, and helidemo_sdl.c.

Definition at line 65 of file helidemo_sdl.c.

Referenced by main().

#define MODE_STOP   2

Examples:

helictrl.cc, and helidemo_sdl.c.

Definition at line 67 of file helidemo_sdl.c.

Referenced by main().

---

Function Documentation

int main	(	int	argc,
		char **	argv
	)

Examples:

helictrl.cc, helidemo_sdl.c, and helidemo_simple.c.

Definition at line 131 of file helidemo_sdl.c.

References handle, HC_Close(), HC_CMD_Repeat(), HC_CMD_Stop(), HC_Init(), INTERVAL, JOYSTICK, JOYSTICK_AXIS_PITCH, JOYSTICK_AXIS_SAUCER_ROLL, JOYSTICK_AXIS_SAUCER_YAW, JOYSTICK_AXIS_THROTTLE, JOYSTICK_AXIS_YAW, JOYSTICK_BUTTON_FIRE1, JOYSTICK_BUTTON_FIRE2, JOYSTICK_BUTTON_PITCH1, JOYSTICK_BUTTON_PITCH2, JOYSTICK_BUTTON_TRIM_L, JOYSTICK_BUTTON_TRIM_R, JOYSTICK_PITCH_MAX, JOYSTICK_ROLL_MAX, JOYSTICK_THROTTLE_MAX, JOYSTICK_YAW_MAX, long_options, MODE_JOYSTICK, MODE_NORMAL, MODE_STOP, send_frame(), and usage().

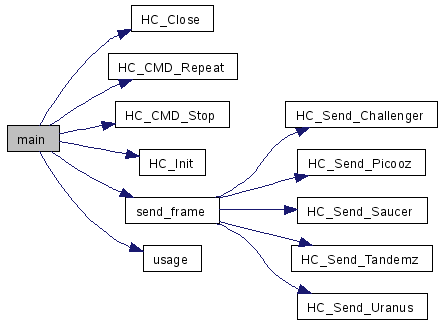

Here is the call graph for this function:

static void send_frame	(	char	protocol,
		char	channel,
		char	throttle,
		char	trim,
		char	yaw,
		char	pitch,
		char	special
	)			[static]

Examples:

helictrl.cc, helidemo_sdl.c, and helidemo_simple.c.

Definition at line 102 of file helidemo_sdl.c.

References bound, handle, HC_Send_Challenger(), HC_Send_Picooz(), HC_Send_Saucer(), HC_Send_Tandemz(), and HC_Send_Uranus().

Referenced by main().

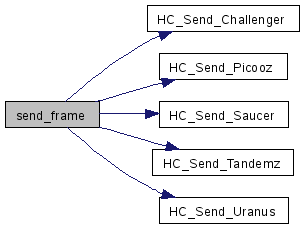

Here is the call graph for this function:

static void usage

(

void

)

[static]

Examples:

helidemo_sdl.c.

Definition at line 85 of file helidemo_sdl.c.

Referenced by main().

---

Variable Documentation

struct usb_dev_handle* handle

Examples:

helictrl.cc, helidemo_sdl.c, and helidemo_simple.c.

Definition at line 100 of file helidemo_sdl.c.

Referenced by HC_Init(), main(), and send_frame().

struct option long_options[] [static]

Initial value:

{
    {"protocol",        required_argument,      0, 'p'},
    {"channel",         required_argument,      0, 'c'},
    {"throttle",        required_argument,      0, 't'},
    {"trim",            required_argument,      0, 'm'},
    {"yaw",                     required_argument,      0, 'y'},
    {"fire",            required_argument,      0, 'f'},
    {"pitch",           required_argument,      0, 'i'},
    {"roll",            required_argument,      0, 'r'},
    {"stop",            no_argument,            0, 's'},
    {"joystick",        no_argument,            0, 'j'},
    {"help",            no_argument,            0, 'h'},
    {0, 0, 0, 0}
}

Examples:

helidemo_sdl.c.

Definition at line 69 of file helidemo_sdl.c.

Referenced by main().

---
